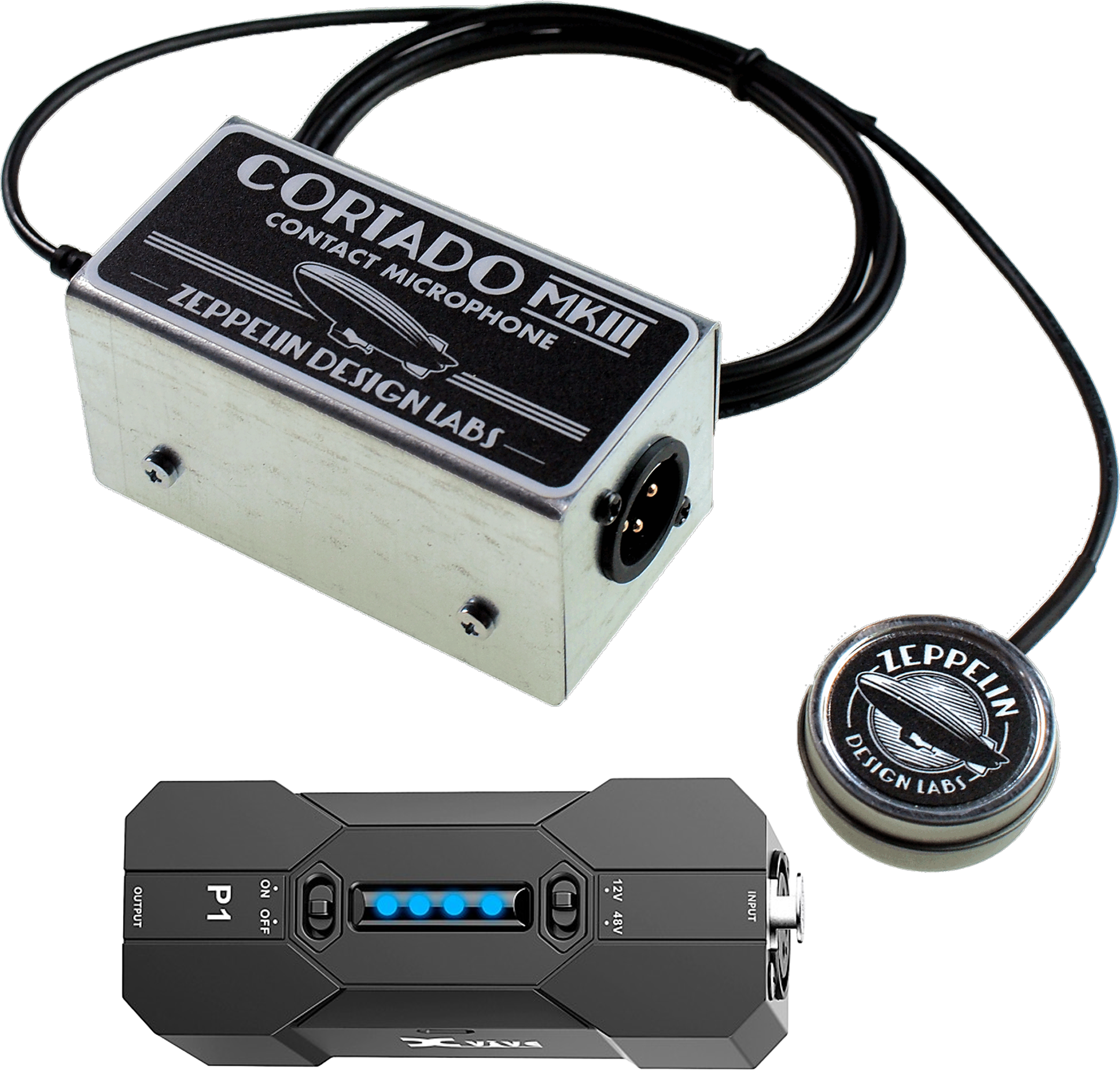

Cortado MkIII Contact Microphone “In The Field” Bundle with Xvive P1
$199.95
This bundle contains the Cortado MkIII Contact Microphone and an Xvive P1 Battery-powered Rechargeable Phantom Power supply.
The Cortado MkIII is the latest incarnation of our popular balanced and buffered contact microphone.
- All-new sensor design is nearly indestructible
- Phantom-powered onboard preamp circuit is housed in rugged steel chassis
- 6′ (1.8m) shielded cable from sensor to chassis
- 23 Hz – 40 kHz bandwidth
- Switchable onboard high pass filter (called “Bass Boost”)
- -10 dB pad for recording extra-loud sources
- Requires 24-48 VDC phantom power from a standard XLR mic cable
- Optional rubber feet for the chassis included
- Mounting putty included
The optional Attachment Accessory Kit includes a variety of clamps, tape and extra putty for attachment to any surface.
Xvive P1 – 48 volts of portable phantom power.
The Xvive P1 Portal Phantom Power Supplies are a line of low noise, 12- and 48-volt power supplies. It runs on rechargeable battery and has enough power to run high current microphones. The P1 allows you to use your devices and microphones that require exter- nal power in any set up. The small size, light-weight, rugged construction and very low noise make them perfect for powering microphones feeding DAT machines, radio mics, tape machines, and mixing panels. Long battery life and a bright LED battery indicator ensure that the microphone is properly powered during your recording session.
Features
- Full 48V of Phantom Power, sometimes the phantom power being supplied is inadequate as well, with the P1, you will always get a clean full 48V of phantom power for the best sound and noise free performance
- Rechargeable battery runs o a rechargeable battery for portability freedom from ground loop issues and independence from AC Power
- Low noise well-regulated electronics and precision resistors are used to satisfy the most demanding Digital requirements
- Transparent and noise free operation
- Small footprint P1 is guitar pedal sized with rubber feet to organize easily with pedal boards
- All metal and rugged enough
- Low battery indicated by a steady glow of the LED
Keep it charged anywhere you go. Order today.
Due to manufacturer restrictions, we are only allowed to ship this bundle to US-based addresses.
5 in stock
Add to cart
The Cortado MkIII is a rugged, versatile, easy-to-use contact mic that reveals the silent sounds hidden in the solid world around you. Rugged steel enclosures house the Cortado MkIII’s sensor and phantom-powered preamp circuit. The mic is equally useful for sound design, music recording, and venue sound reinforcement. The sensor head attaches easily to most surfaces with putty (included), clamp, or tape. The built-in pad can be used to cut sensitivity when recording very loud sources. The switchable Bass Boost function extends low-end response when your project needs maximum rumble and boom.
The sensor head is connected to the preamp chassis with a 6’ (1.8m) high quality shielded cable. The preamp receives 48V phantom power from your standard XLR mic cable.
The Cortado MkIII is the most affordable professional contact mic in its class. The attachment accessory kit includes a variety of clamps and adhesives to easily attach the Cortado, temporarily or permanently, to most any object.
https://zeppelindesignlabs.com/product/cortado-mkiii-contact-mic-attachment-accessory-kit/
Field Recordings
You must be logged in to post a review.
- Using The Cortado MkIII
- Cortado MkIII Contact Mic Owners Guide (1 MB PDF)
- Cortado-MkIII-Contact-Microphone-Dimensions - 1 page, 11" x 17" (150kB)
- Cortado MkIII Data sheet (400kB)
- Video / Audio
Field Recordings
[soundcloud url="https://soundcloud.com/zeppelin-design-labs/sets/cortado-mkiii-contact" params="color=ff5500&auto_play=false&hide_related=false&show_comments=true&show_user=true&show_reposts=false" width="100%" height="166" iframe="true"
