Zeppelin Design Labs

Expression Upgrade

DIY Kit Intermediate skill

$25.00

Description

Turn your VPM-1 into an expression pedal. The treadle sends a 0–5 V control voltage out of the TUNER/EXP jack, so the same pedal that sets your volume can sweep a parameter on any expression-capable effect.

  • DIP switches match the expression-jack wiring of the pedal you want to control.
  • The response curve and reverse setting you choose on the VPM-1 also shape the expression output.
  • Ships with a 50K digital potentiometer installed and a spare 10K for pedals that prefer it (most Line 6 pedals, for example).
  • Works with pedals whose expression input runs at 5 V or less. Use a TRS cable; some pedals take a plain TS cable.

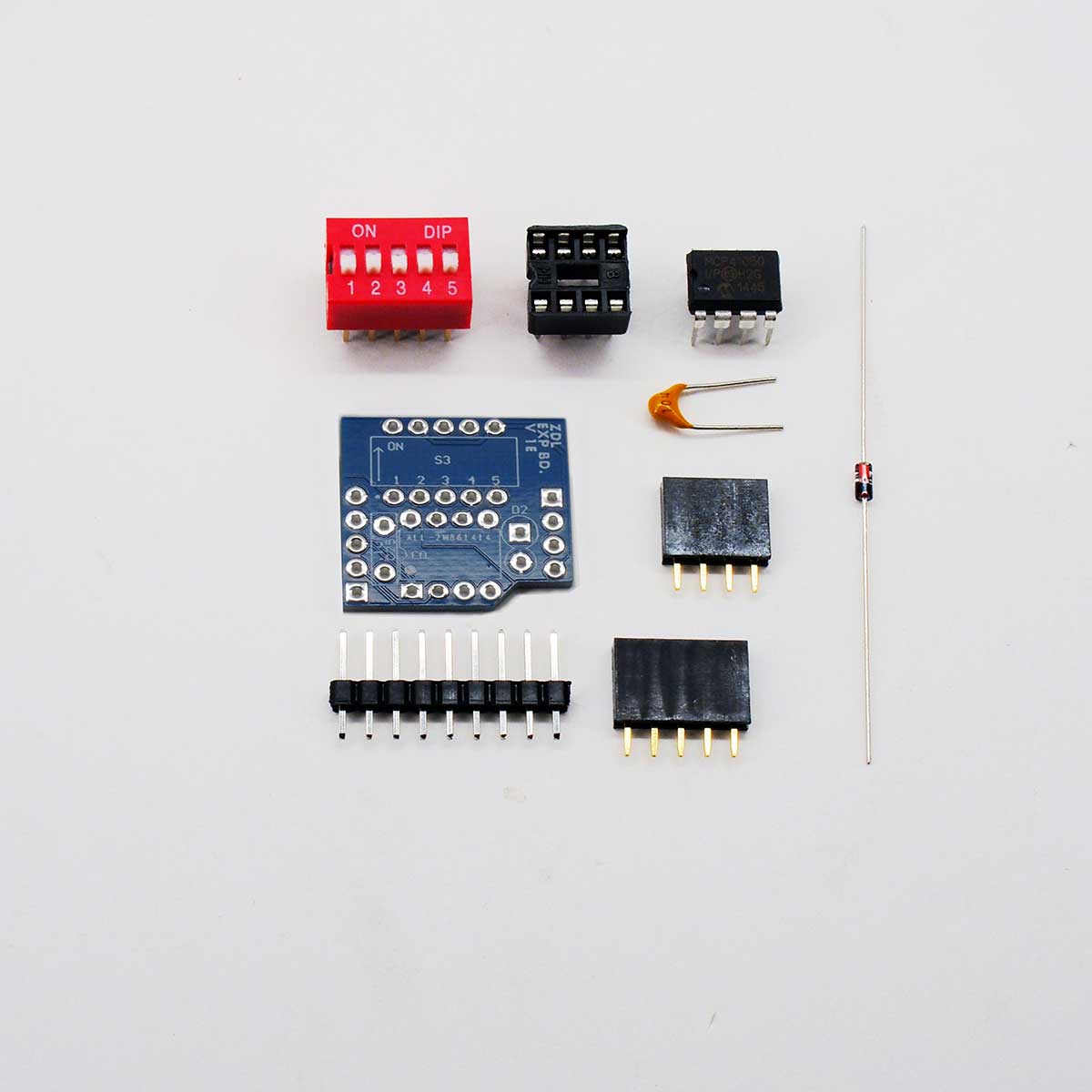

DIY Kit: the board and parts to solder yourself. Assembly is covered in the VPM-1 assembly manual.

Plug-in Module: the expression board, assembled and tested. It plugs into the headers on your existing VPM-1 main board. No soldering.

Buying a new pedal? The Ready to Install VPM-1 Expression comes with expression already installed. Manuals are on the documentation page.
